You’ll need to be a Staff, Admin, or Owner in ChartMogul to access destinations. Read more about user roles and permissions.

Webhooks are a lightweight solution for pushing data from one app to another. Triggered by an event, the app sends a predefined dataset as an HTTP request to a URL (endpoint) of your choice.

Here’s what we cover in this article:

How ChartMogul webhooks work

ChartMogul webhooks allow you to send MRR movements as a JSON payload. Real-time MRR movements serve as the events that trigger the webhook.

Learn more about webhooks and data contained in the JSON payload on our Developer Hub.

An MRR movement is the increase or decrease in a subscription’s MRR that results from a change made to the subscription (a subscription event). For example, when a customer upgrades to a higher plan (the subscription event), the increase in the customer’s monthly cost (e.g., $50) is the MRR movement. Learn more.

Real-time MRR movements

In ChartMogul, an MRR movement is considered real-time when the subscription event and a successful transaction occur within 12 hours of each other. When more than 12 hours have passed, ChartMogul no longer considers the MRR movement real-time and does not activate the webhook.

When webhooks are not triggered

Webhooks in ChartMogul are not triggered:

  • When an MRR movement isn't real-time.
  • For App Store Connect, as ChartMogul doesn't receive data in time to generate real-time MRR movements.
  • When a change to a subscription doesn’t change its MRR, e.g., when a customer switches to a new plan with the same price.
  • When you change a customer’s historical MRR by merging customers, editing MRR, or connecting subscriptions. Read more.
  • When you only provide the date of a subscription event or transaction and the default time (midnight) falls outside of the 12-hour window for the MRR movement to be considered real-time.
  • When ChartMogul reimports a customer, e.g., due to a failed invoice or when multiple transactions have failed.

Registering a webhook

ChartMogul does not support HTTP Basic Authentication with webhooks.

Register a webhook in ChartMogul as a destination:

  1. Navigate to Data & Config > Destinations.
  2. Click Add Destination.
  3. Select Webhook.
  4. Enter a unique name for your webhook in the Name field and click Next.
  5. Enter the URL for your webhook in the URL field and click Update.
    Don’t click Update without entering a URL. Even though ChartMogul allows you to register a webhook without a URL, doing so would prevent you from registering further webhooks.

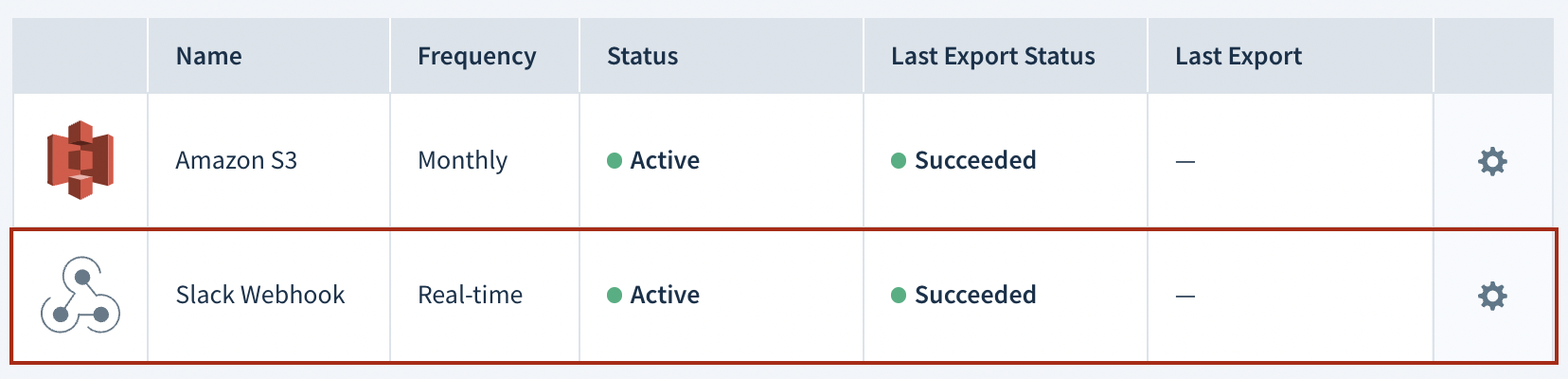

Your new webhook will appear in the Destinations table. Edit or delete it by clicking the Settings   icon.

Viewing the status and history of a webhook

  1. Navigate to Data PlatformDestinations.
  2. View a webhook’s status in the Last Export Status column:
    • Succeeded — the URL returned an OK status (HTTP code 2xx)
    • Failed — the URL returned a status other than OK (HTTP codes 1xx, 3xx, 4xx, or 5xx)

When ChartMogul receives anything other than an OK status (HTTP code 2xx), it retries sending the webhook, up to 17 times. After 17 attempts, if the URL endpoint hasn’t returned an OK status, ChartMogul stops retrying and displays Failed in the webhook’s Last Export Status column. Follow the steps in the next section to retry webhooks manually.

Retrying a webhook

To have ChartMogul retry sending your webhook:

  1. Navigate to Data & Config > Destinations.
  2. Find and select your webhook.
  3. In the Webhooks table, find and select a recent MRR movement ChartMogul has sent or attempted to send to the webhook’s URL.
    A history of MRR movements sent to example customers formatted as a table with columns for Status, Customer, Type (MRR Movement), and Created (date).
  4. Finally, click Retry.
